Qantas Boeing 747 Seat Maps

Four Qantas 747-400 and 747-400ER configurations show how the airline traded First Class and cabin density over the aircraft's later career.

By , Boeing 747 EnthusiastPublished Reviewed

Qantas operated the Boeing 747 for almost half a century, and the seat map changed repeatedly. The comparison covers four later 747-400 and 747-400ER configurations, followed by two complete airline-issued maps with every seat row and both decks visible.

Qantas 747 configurations compared

Total First Business Premium Economy Economy Character
307 14 66 40 187 Most premium space
353 14 52 32 255 Four-class layout
364 — 58 36 270 Refitted three-class layout
371 — 56 40 275 Highest late-fleet capacity

The gap between the 307-seat and 371-seat versions is 64 passengers even though both belonged to the 747-400/400ER family. That is why a useful historical seat map must identify the airline, era and configuration—not just the aircraft model.

What the full maps show

The two full maps show individual seat letters and row numbers, cabin boundaries, galleys, toilets, bassinets, exits and accessible facilities. They cover the documented 364-seat and 353-seat layouts.

The 307- and 371-seat configurations remain in the comparison table because Qantas fleet records verify their class totals, but a matching primary-source row map has not been reproduced here.

For much earlier cabins, see the vintage 747 seat-map archive, including Qantas 747-200B and 747SP layouts from 1986.

Cabin archive

Visual seat maps

Cabin zones run from the nose on the left to the tail on the right. Seat symbols show the typical abreast pattern, not every individual row.

Archived configurationPost-reconfiguration, documented 2012

Qantas 747-400/400ER — 364 seats

Qantas's widely used late-career layout removed First Class and provided 58 Business, 36 Premium Economy and 270 Economy seats.

364passenger seats
Upper deckPart of the 58-seat Business Class cabin
Business Class2-2 typicalFully flat Skybed seating
Main deckWhole-aircraft totals: 58 Business · 36 Premium Economy · 270 Economy
Business Class2-3-2 typicalNose and forward main-deck sections
Premium Economy36 seats · 2-4-2 typical
Economy270 seats · 3-4-3 typical

Map note: Business Class was split between the upper and main decks. Class totals are for the whole aircraft and are not repeated as deck-level subtotals.

Configuration source: Qantas official 747-400 seat-map PDF

Archived configurationFour-class layout, documented 2012

Qantas 747-400 — 353 seats

This four-class aircraft carried 14 First, 52 Business, 32 Premium Economy and 255 Economy passengers.

353passenger seats
Upper deckPart of the 52-seat Business Class cabin
Business Class2-2 typical
Main deckWhole-aircraft totals: 14 First · 52 Business · 32 Premium Economy · 255 Economy
First Class14 seatsRows 1–4 in the nose
Business Class2-3-2 typical
Premium Economy32 seats · 2-4-2 typical
Economy255 seats · 3-4-3 typical

Map note: The official archived map identifies rows 1–4 as First Class and shows the remaining premium and economy cabins across both decks.

Configuration source: Qantas official 14F/52J/32W/255Y seat-map PDF

Archived configurationDocumented 2012–2014

Qantas 747-400/400ER — 371 seats

A three-class variation provided 56 Business, 40 Premium Economy and 275 Economy seats, the highest total in Qantas's documented late fleet.

371passenger seats
Upper deckBusiness Class seating
Business Class2-2 typical
Main deckWhole-aircraft totals: 56 Business · 40 Premium Economy · 275 Economy
Business Class2-3-2 typical
Premium Economy40 seats · 2-4-2 typical
Economy275 seats · 3-4-3 typical

Map note: This zone map is based on the class totals in Qantas fleet data. Exact seat rows could vary after maintenance or cabin updates.

Configuration source: Qantas Data Book 2014

Archived configurationPre-reconfiguration, documented 2012

Qantas 747-400/400ER — 307 seats

The lowest-density late Qantas configuration carried 14 First, 66 Business, 40 Premium Economy and 187 Economy passengers.

307passenger seats
Upper deckPart of the 66-seat Business Class cabin
Business Class2-2 typical
Main deckWhole-aircraft totals: 14 First · 66 Business · 40 Premium Economy · 187 Economy
First Class14 seatsForward nose cabin
Business Class2-3-2 typical
Premium Economy40 seats · 2-4-2 typical
Economy187 seats · 3-4-3 typical

Map note: This arrangement devoted substantially more of the aircraft to premium cabins than the 364- and 371-seat layouts.

Configuration source: Qantas Data Book 2012

  • Qantas Boeing 747-400 and 747-400ER seat map with 364 seats across both decks
    Qantas 364-seat 747-400/400ER layout: 58 Business, 36 Premium Economy and 270 Economy seats.Select the map to open the full-size version.QantasSource

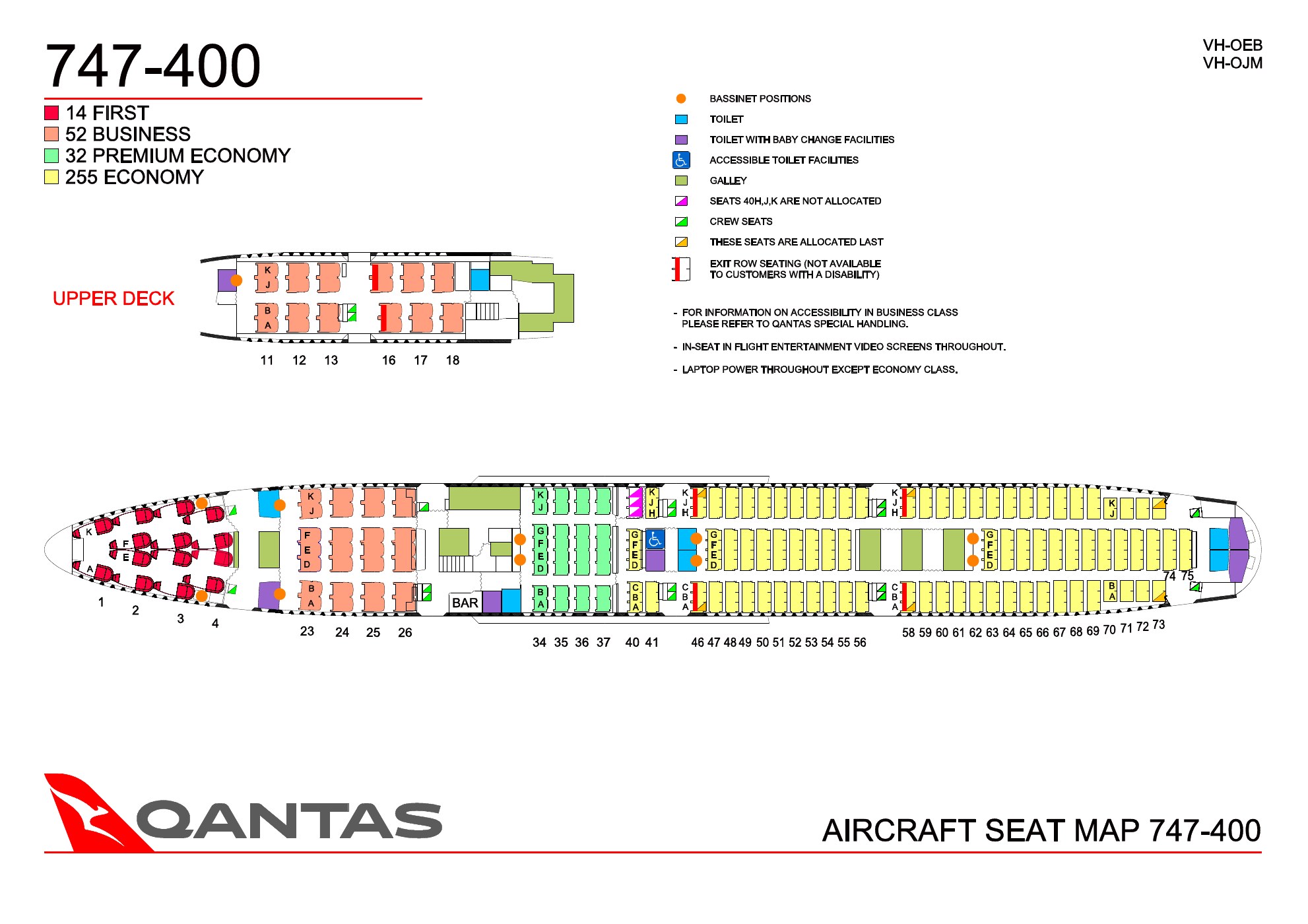

  • Qantas Boeing 747-400 seat map with 353 seats and every row shown
    Qantas 353-seat 747-400 layout: 14 First, 52 Business, 32 Premium Economy and 255 Economy seats.Select the map to open the full-size version.QantasSource

Frequently asked questions

How many seats did a Qantas 747-400ER have?
It depended on the cabin version. Qantas documented late 747-400 and 747-400ER layouts with 307, 353, 364 and 371 seats.
Which Qantas 747 layout had no First Class?
The 364-seat layout had 58 Business, 36 Premium Economy and 270 Economy seats, with no First Class cabin.
Where was Business Class on the Qantas 747?
In later configurations, Business Class occupied the upper deck and forward portions of the main deck. Exact row assignments depended on the layout.
Can these archived maps be used to select a seat today?
No. Qantas retired its last Boeing 747 in 2020. These maps are preserved for historical comparison and aircraft research.

Sources

Facts on this page are checked against the primary and institutional references below.

  1. Qantas official 364-seat Boeing 747-400 map — Qantas
  2. Qantas official 353-seat Boeing 747-400 map — Qantas
  3. Qantas Data Book 2012 — Qantas
  4. Qantas Data Book 2014 — Qantas
